ROTARY EVAPORATOR 3 V STARTER SOL

Description

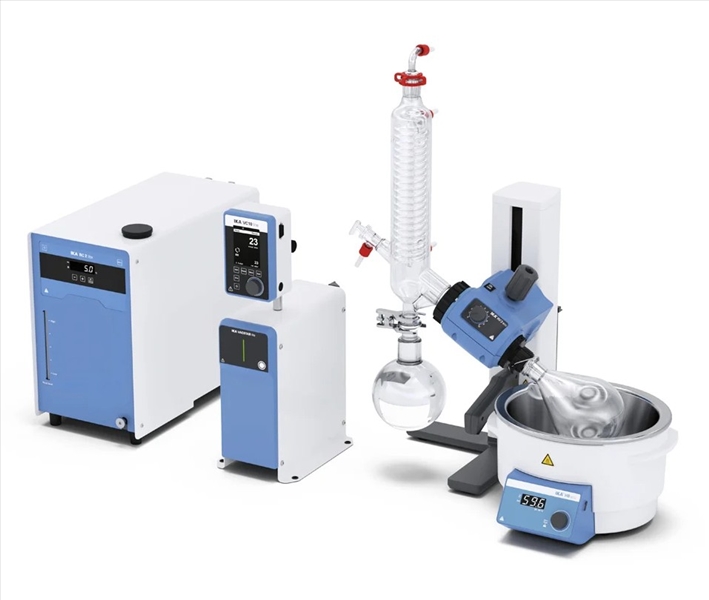

Evaporatore Rotante RV 3 V Starter solution. Include: RV 3 FLEX, vetreria verticale RV 10.1, cotrollore vuoto VC 10
lite, pompa da vuoto VACSTAR lite, ricircolatore di raffreddamento RC 2 lite.

Type of cooling vertical
Cooling surface 1500 cm2
Motor principle DC
Speed range 20 - 300 rpm
Speed tolerance set rotation speed < 100rpm ±1 rpm
Speed tolerance set rotation speed > 100rpm ±1 %
Lift manual
Stroke 150 mm
Heating temperature range room temp. - 99 °C
Vacuum pump VACSTAR lite
Pump rate max. (50/60Hz) 1.0 m³/h
Pump rate max. (50/60Hz) 16.7 l/min
Final pressure 9 mbar
Dimensions (W x H x D) 440 x 530 x 330 mm
Weight 28.3 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 1400 W

0010013945

---
